Exercise 1: Scaling Policy¶

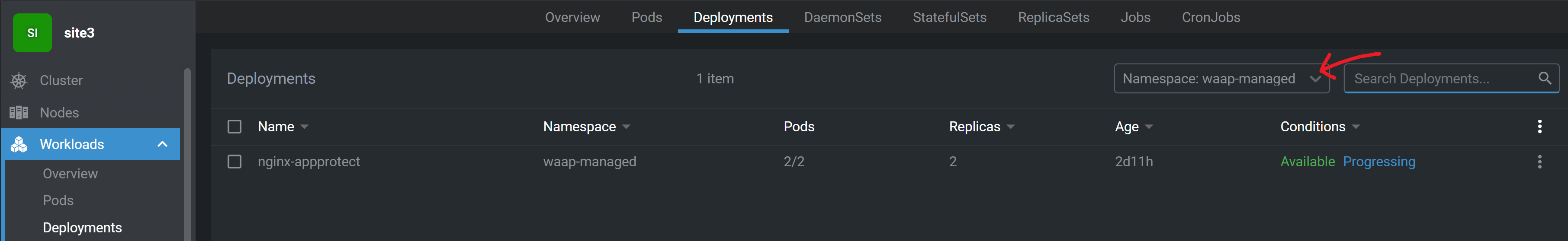

• In Lens, edit Deployment of NGINX App Protect instances: Workloads > Deployments > NameSpace: waap-managed > nginx-appprotect

• Scroll to see the environment variable when a POD starts

      env:
        - name: ENV_CONTROLLER_INSTANCE_GROUP
          value: lab_k8s_{{site_ID}}
        - name: ENV_CONTROLLER_LOCATION
          value: site{{site_ID}}_waap_managed
        - name: ENV_CONTROLLER_API_URL
          value: '10.0.0.12:443'

• Note the value of Controller’s Instance-Group to be registered

• In NGINX Controller, login as SuperNetOps

  • email: supernetops@f5cloudbuilder.dev

  • password: NGINXC0ntroller!

• User Role of a SuperNetOps allows a user to view, create and delete any instance-groups (FULL authorization)

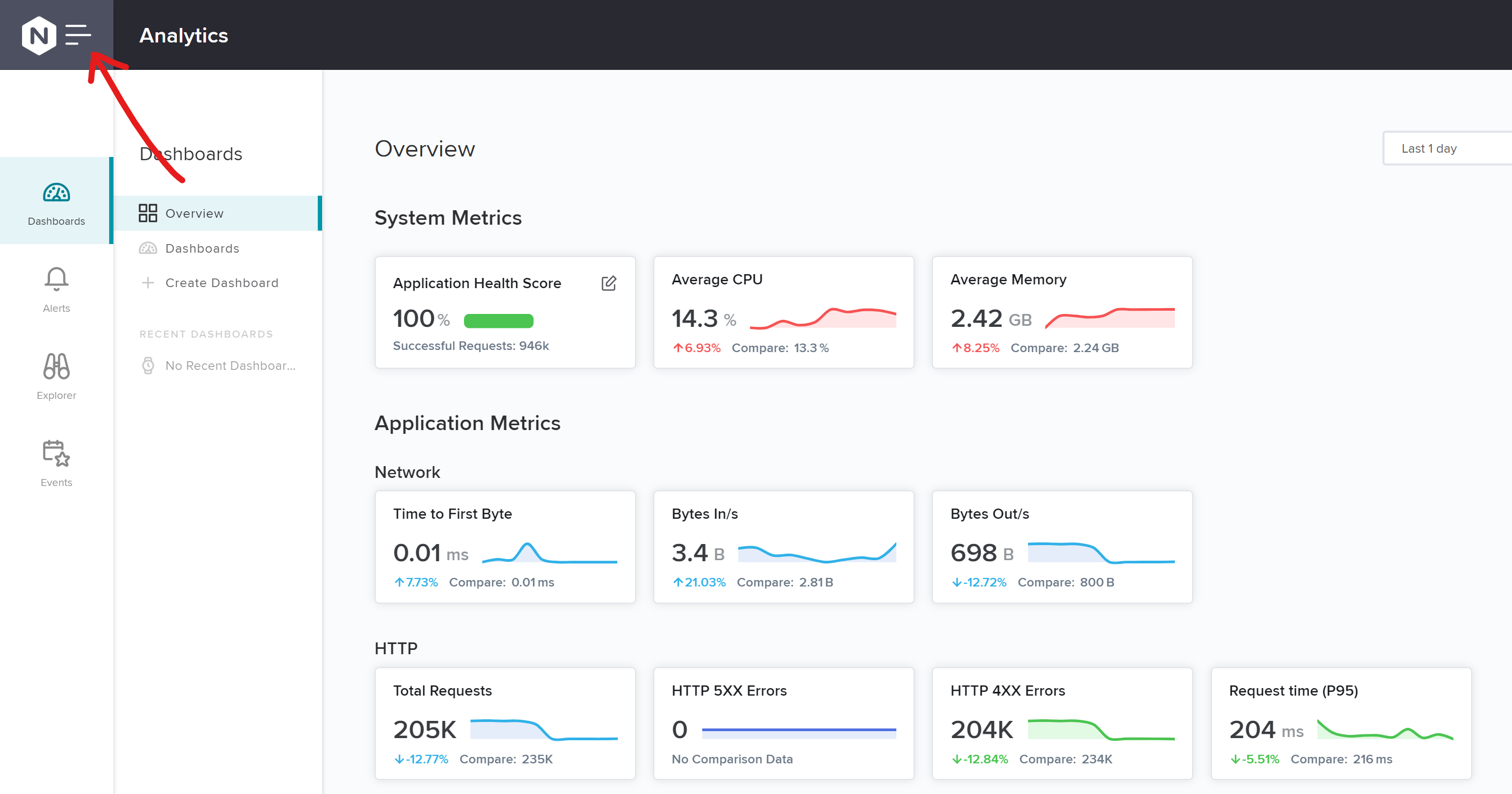

• Click on N on the top left in order to switch to menu infrastructure

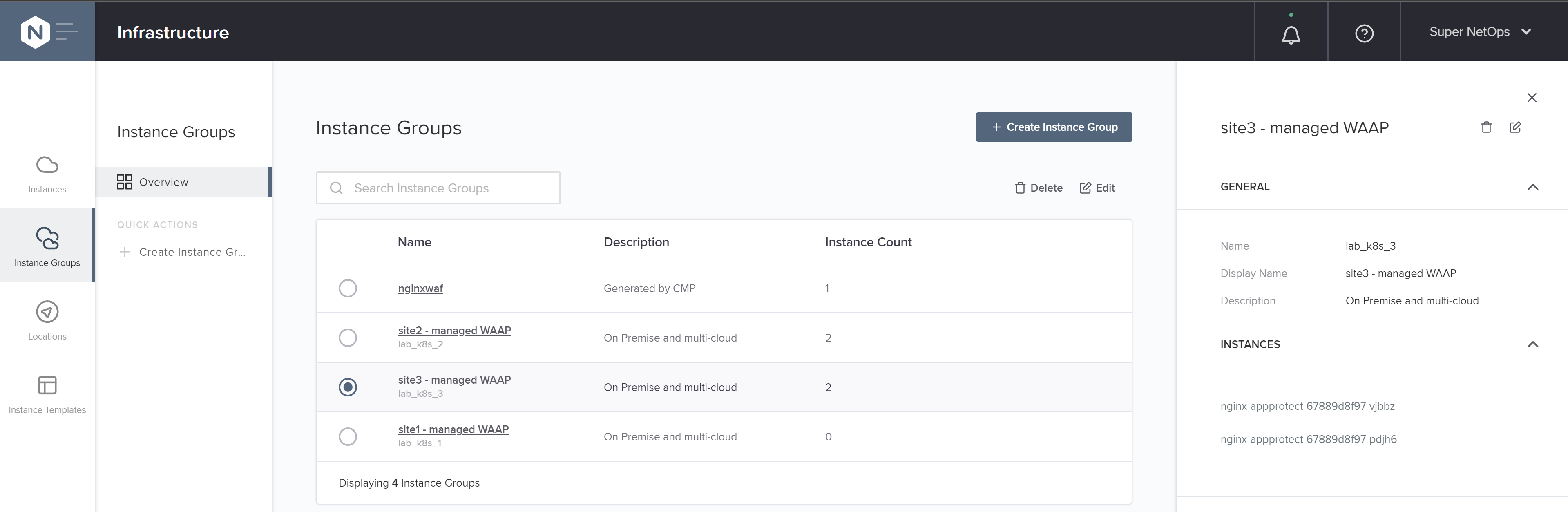

• Click Instance Groups

• Check if you see POD names of your Kubernetes cluster {{site_ID}}

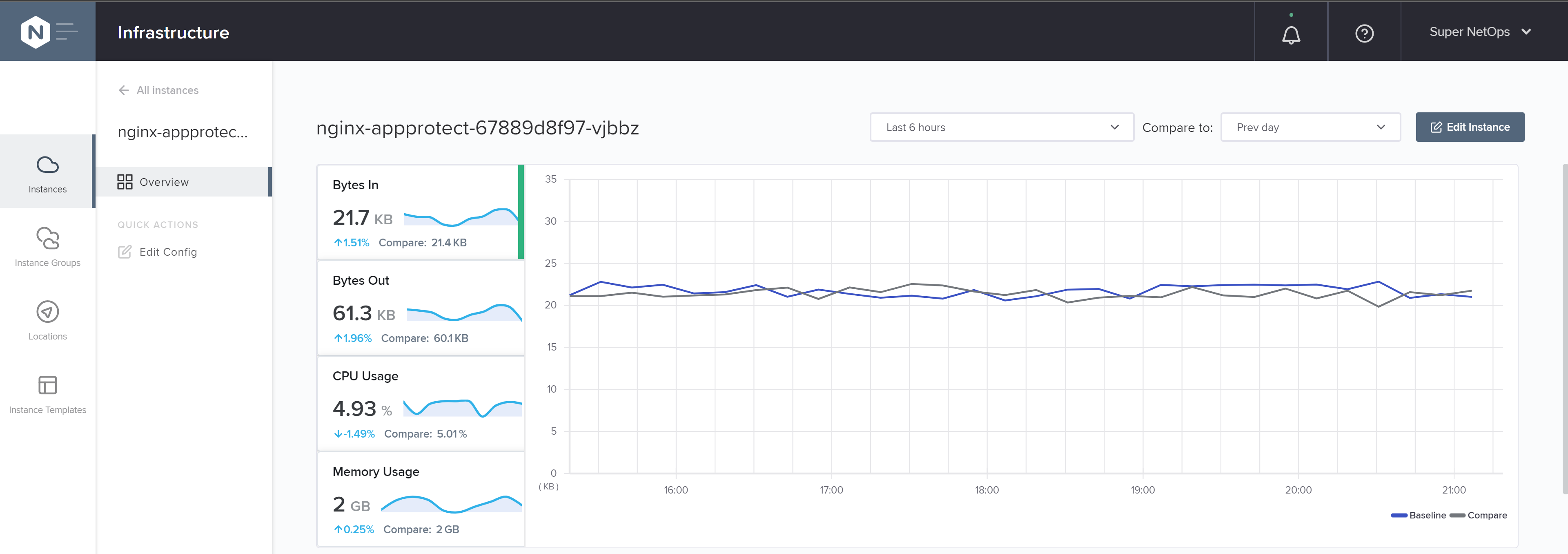

• Click on an instance name

• Scroll down to see Services running in this Instance

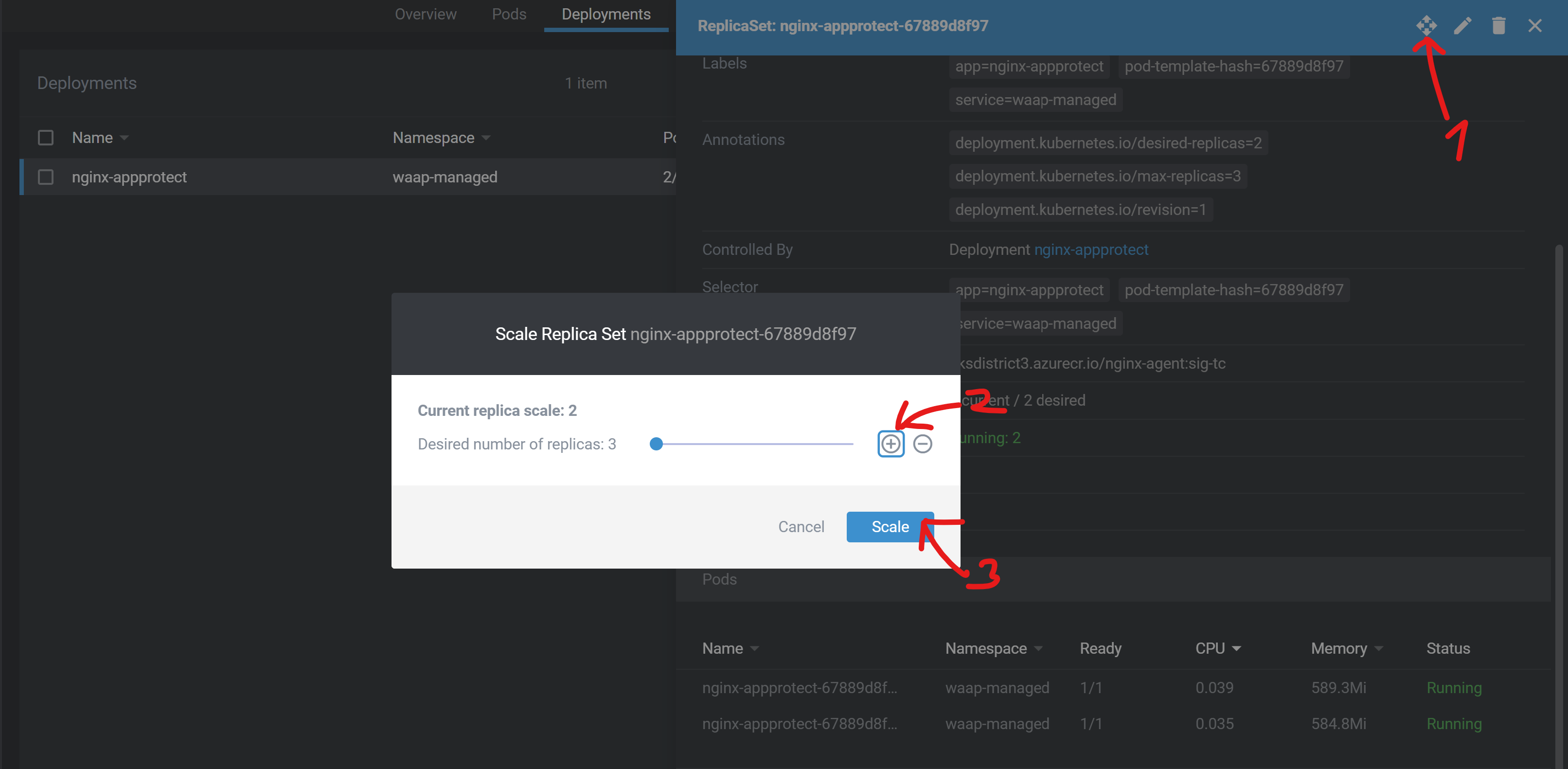

• In Lens, you COULD manually scale out Deployment of NGINX App Protect instances BUT do not do that because an auto-scaling policy is in place

• Horizontal Pod Autoscaler (HPA) manage the auto-scaling policy. Here, HPA is configured to maintain an average CPU utilization across all Pods less than 80%. See here for more details on the algorithm.

• In Lens, go to Configuration > HPA (Horizontal Pod Autoscaler)

• Set minReplicas value to 3 then click on Save & Close

• HPA will increase the number of replicas (via the deployment)

• In Controller, see the new instance registered in instance-group lab_k8s_{{site_ID}}

Capture The Flag

1.1 What is the threshold of CPU usage that raises a Scale Out?

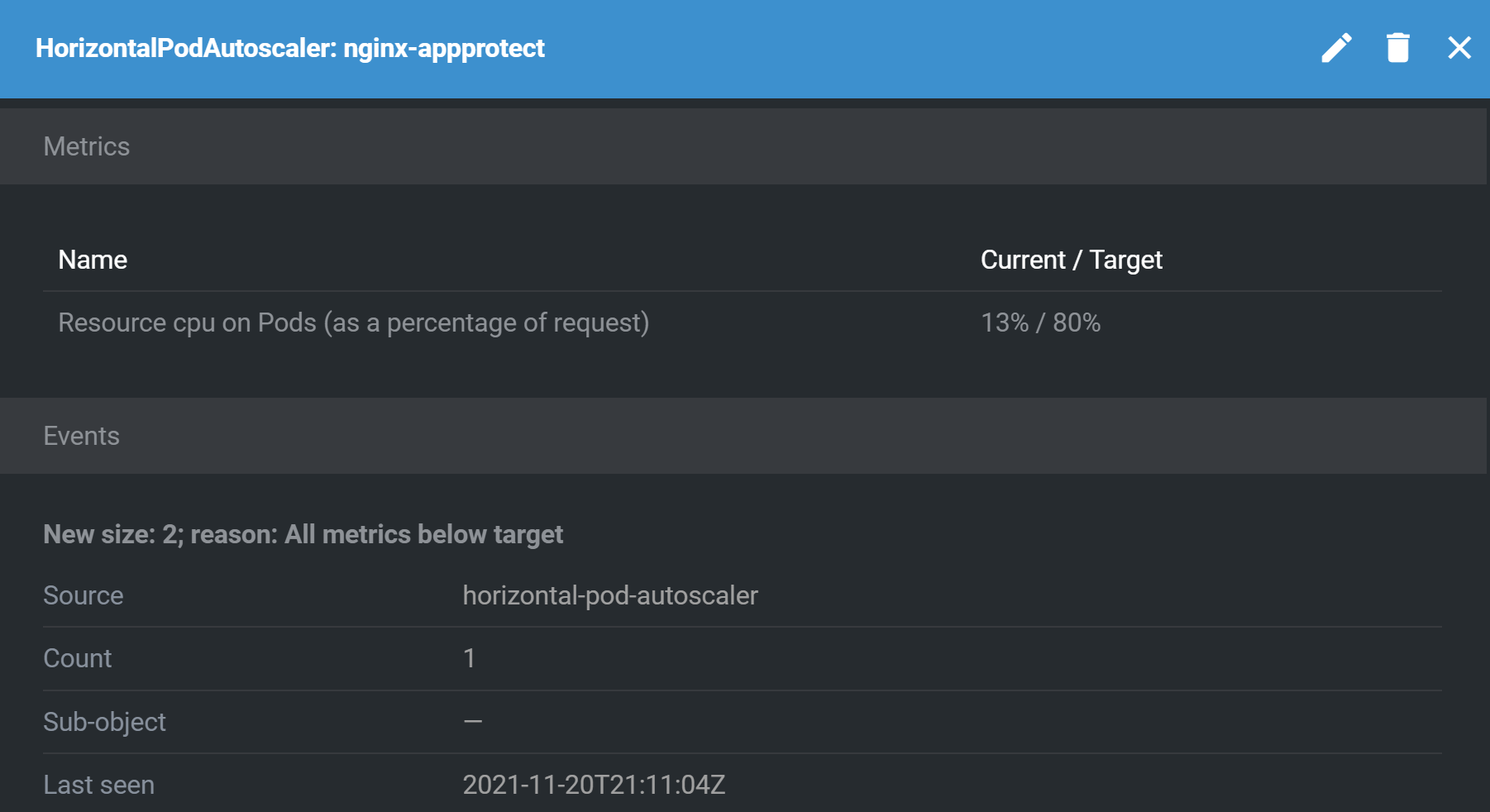

• Go back after 300 seconds, you will see 2 running replicas. See here for more details on the default behavior.

Exercise 2: Upgrade Signatures¶

Oh my god, deployed image of NGINX App Protect contains a very old signature package. Upgrade with a fresh image that have been already built and uploaded to Azure Container Registry linked to your AKS cluster.

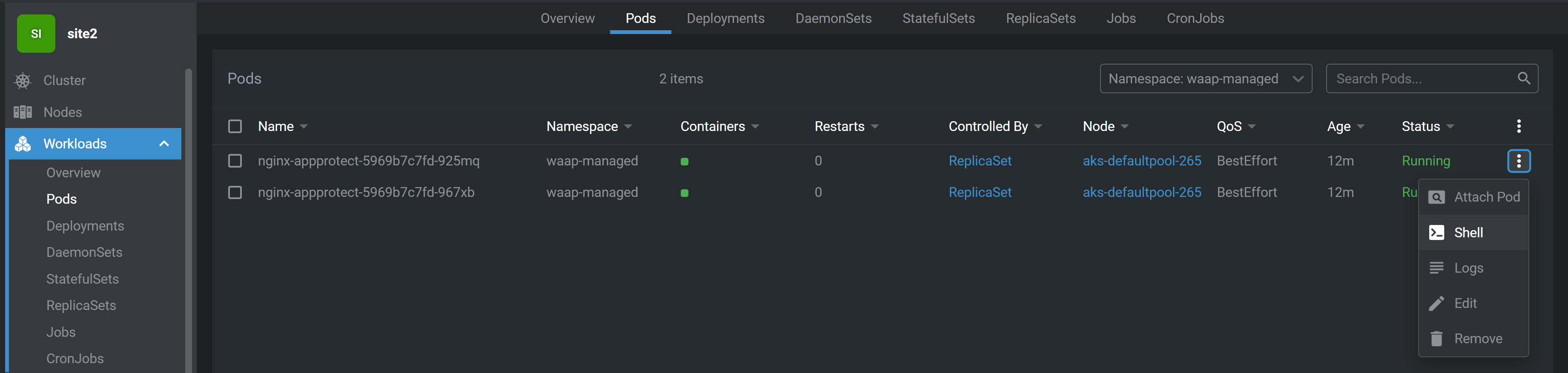

• In Lens, go to Workloads > PODs > NameSpace: waap-managed > nginx-appprotect

• Open a shell

• Show signature packages

cat /var/log/app_protect/compile_error_msg.json | python -m json.tool

output

{
    "user_signatures_packages": [],
    "threat_campaigns_package": {},
    "attack_signatures_package":
    {
        "revision_datetime": "2019-07-16T12:21:31Z"
    },
    "completed_successfully": true
}

Capture The Flag

2.1 What is the last update of signature package?

2.2 What is the last update of Threat Campaign?

• Show the last update of signature package

sudo yum --showduplicates list app-protect-attack-signatures

• Show the last update of Threat Campaign

sudo yum --showduplicates list app-protect-threat-campaigns

• Go to Workloads > Deployments > NameSpace: waap-managed > nginx-appprotect > Edit

• Update specification using latest image of NGINX App Protect (use CTRL+F on word image)

spec:
  ...
  template:
    ...
    spec:
      containers:
        - name: nginx-agent
          image: 'aksdistrict2.azurecr.io/nginx-agent:latest'

• View rolling upgrade of PODs by clicking on nginx-appprotect deployment

• Open a shell on a fresh POD

• Show signature packages and see that packages are now up-to-date

cat /var/log/app_protect/compile_error_msg.json

output

{
    "user_signatures_packages":
    [],
    "attack_signatures_package":
    {
        "revision_datetime": "2021-11-04T19:18:42Z",
        "version": "2021.11.04"
    },
    "completed_successfully": true,
    "threat_campaigns_package":
    {
        "revision_datetime": "2021-11-03T07:51:14Z",
        "version": "2021.11.03"
    }
}

Exercise 3: Super NetOps¶

User Role “SuperNetOps” allows user:

• to manage NGINX App Protect instances (FULL authorization)

• to view all Services (READ authorization)

• In NGINX Controller, login as SuperNetOps

  • email: supernetops@f5cloudbuilder.dev

  • password: NGINXC0ntroller!

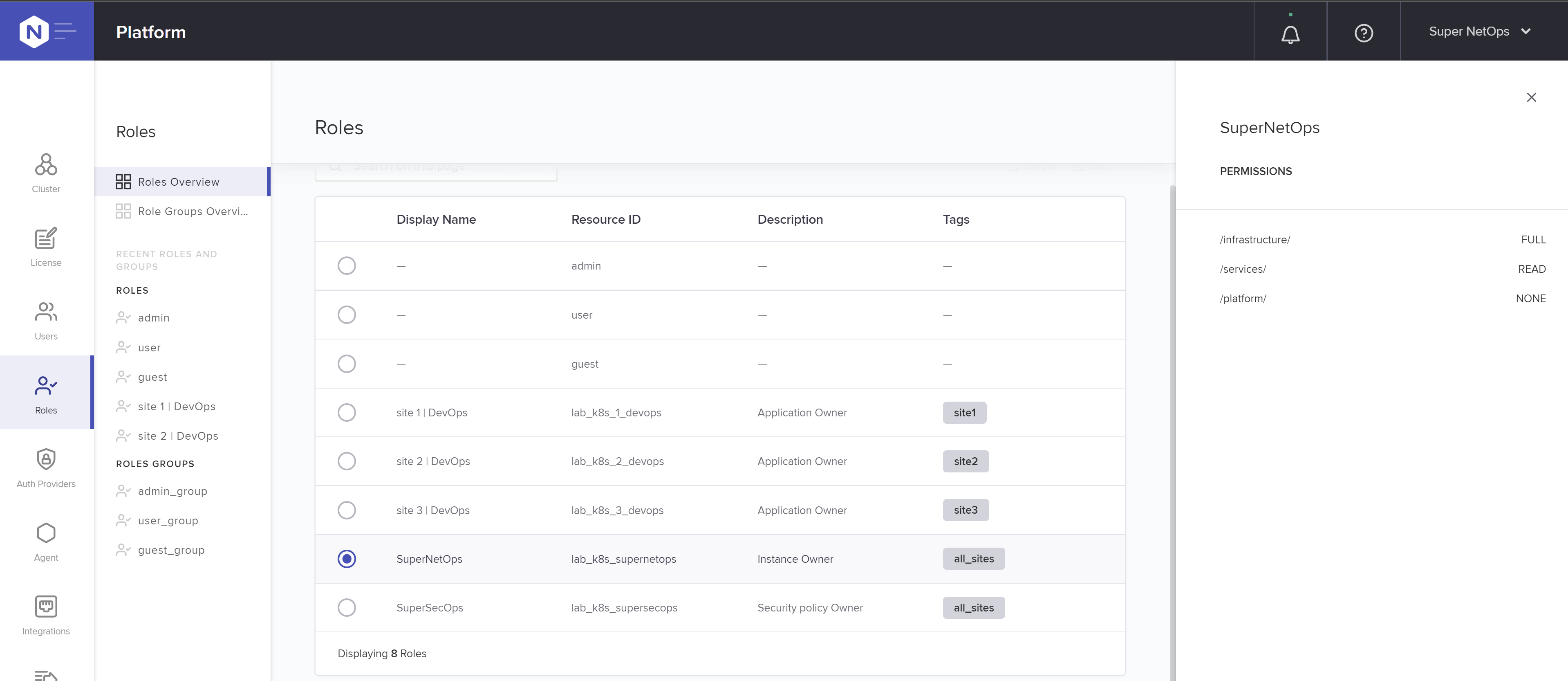

• Go to Platform > User Role then see configuration PATHs and attached authorization levels

• Go to Services > Gateway. You can see all gateways but edit none.

Exercise 4: Super SecOps¶

User Role “SuperSecOps” allows user:

• to manage all WAF policies (FULL authorization)

• to view all Services (READ authorization)

• In NGINX Controller, login as SuperSecOps in a different web browser if you can

  • email: supersecops@f5cloudbuilder.dev

  • password: NGINXC0ntroller!

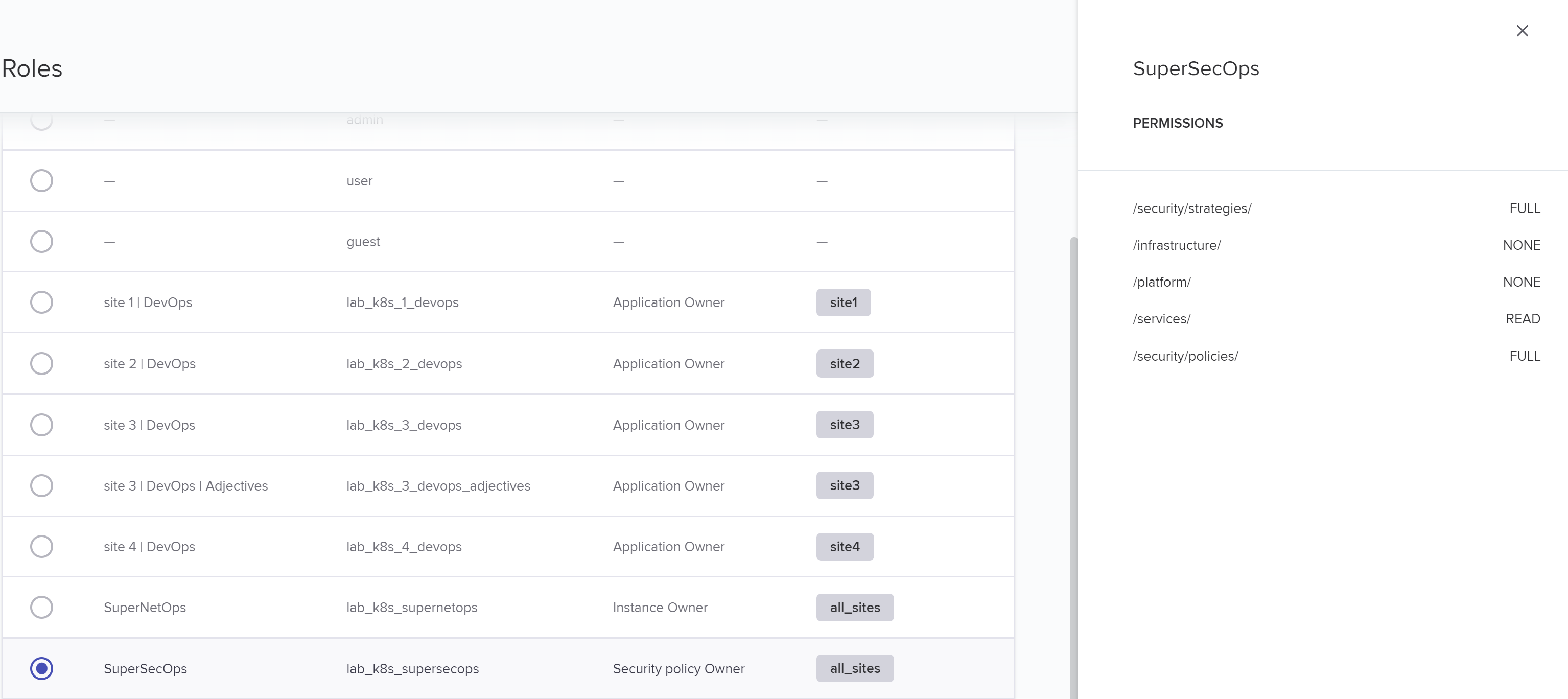

• Go to Platform > User Role then see configuration PATHs and attached authorization levels

• Go to Services > Security Strategies

• See all Security Strategies available for consumption by DevOps

Exercise 5: DevOps¶

User Role “DevOps” allows user:

• to manage (FULL authorization) his applications inside his own environment {{ site_ID }} only

• to view all WAF policies (READ authorization)

• In NGINX Controller, login as DevOps owner of your site

  • email: devops{{ site_ID }}@f5cloudbuilder.dev

  • password: NGINXC0ntroller!

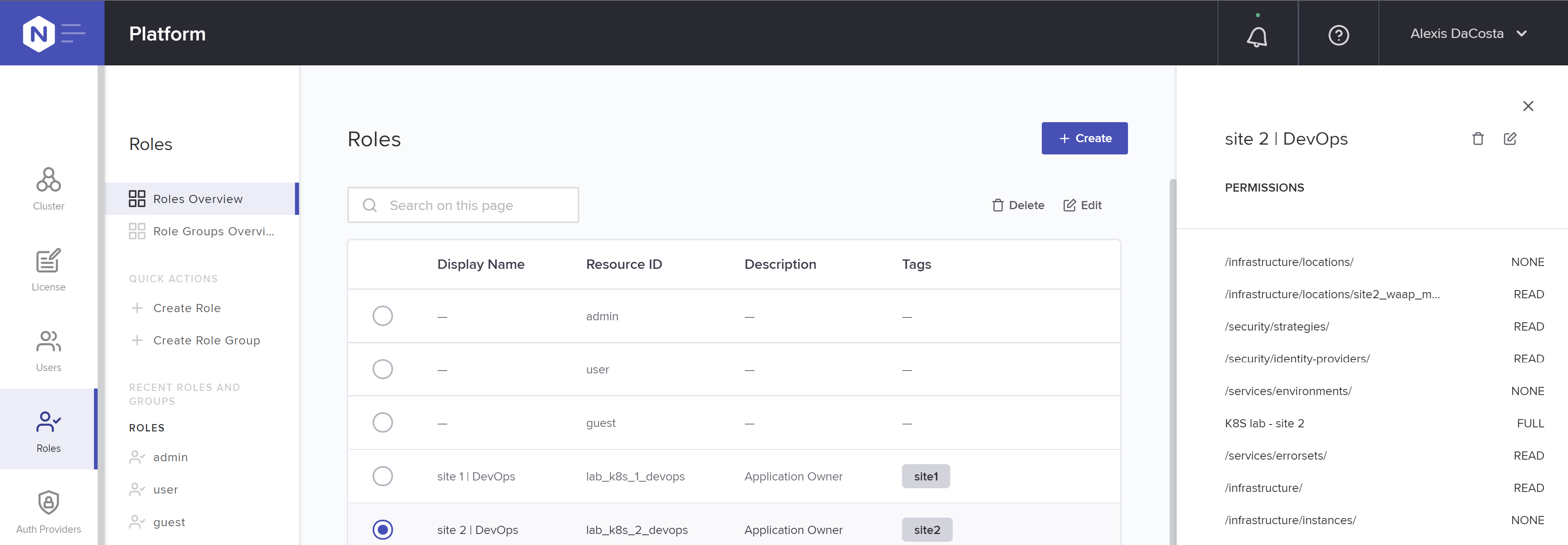

• Go to Platform > User Role then see configuration PATHs and attached authorization levels

• DevOps configure an Application using logical objects:

  • Environment: a Tenant.

    A DevOps user is assigned into one or multiple Tenants aka Environment

  • Gateway: a listener on TCP/UDP service or on HTTP(s) host(s).

    A Gateway is a configuration object within an Environment, often used as the top level for defining how applications are delivered to customers – settings such as hostname, protocol, and TLS/SSL behavior – though such settings can also be made at a lower level. Gateways also employ the concept of Placement which is how you link Controller and the NGINX App Protect instances that receive the configurations and do the actual work (data-plane).

  • App: a logical group of Components

    App configuration object is where you begin to model applications and group traffic‑shaping behaviors. You can use as many or as few Apps as needed to meet the needs of your organization. The only requirement is that an App must be unique within an Environment.

  • Component: a Traffic Management policy with a Security strategy attached.

    Within an App, Components describe the desired traffic‑shaping behavior for the App. In the simplest case, all the traffic for a given pathname is sent to the same group of servers. But Components also control more advanced shaping like header manipulation, URL rewriting, backend load‑balancing behaviors, cookie handling, and other settings.

  • Analytics: auto-generated or custom dashboard offer observability (metrics, security event) at each object level

    Application Insights offer a clear visibility into the number, performance, and ownership costs of your apps With per‑app analytics, you gain new insights into app performance and reliability so you can pinpoint performance issues before they impact production.

• In case of an Application based on micro-services, teams works on different Components. For example, Sentence API has different micro-services:

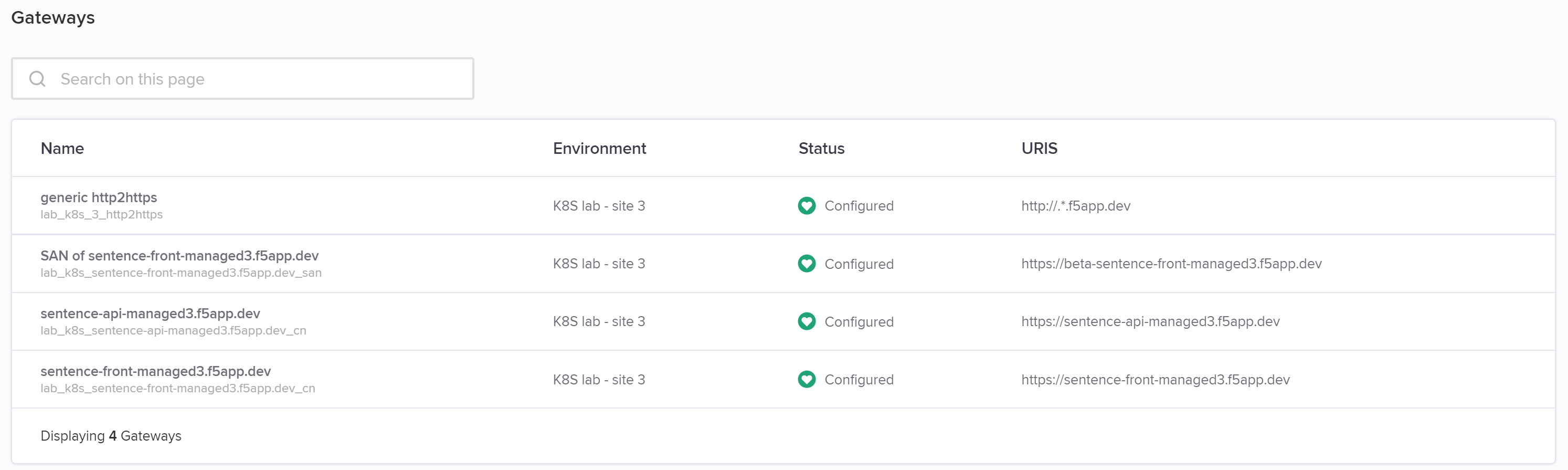

• Go to Services > Gateways > sentence-front-managed{{ site_ID }}.f5app.dev

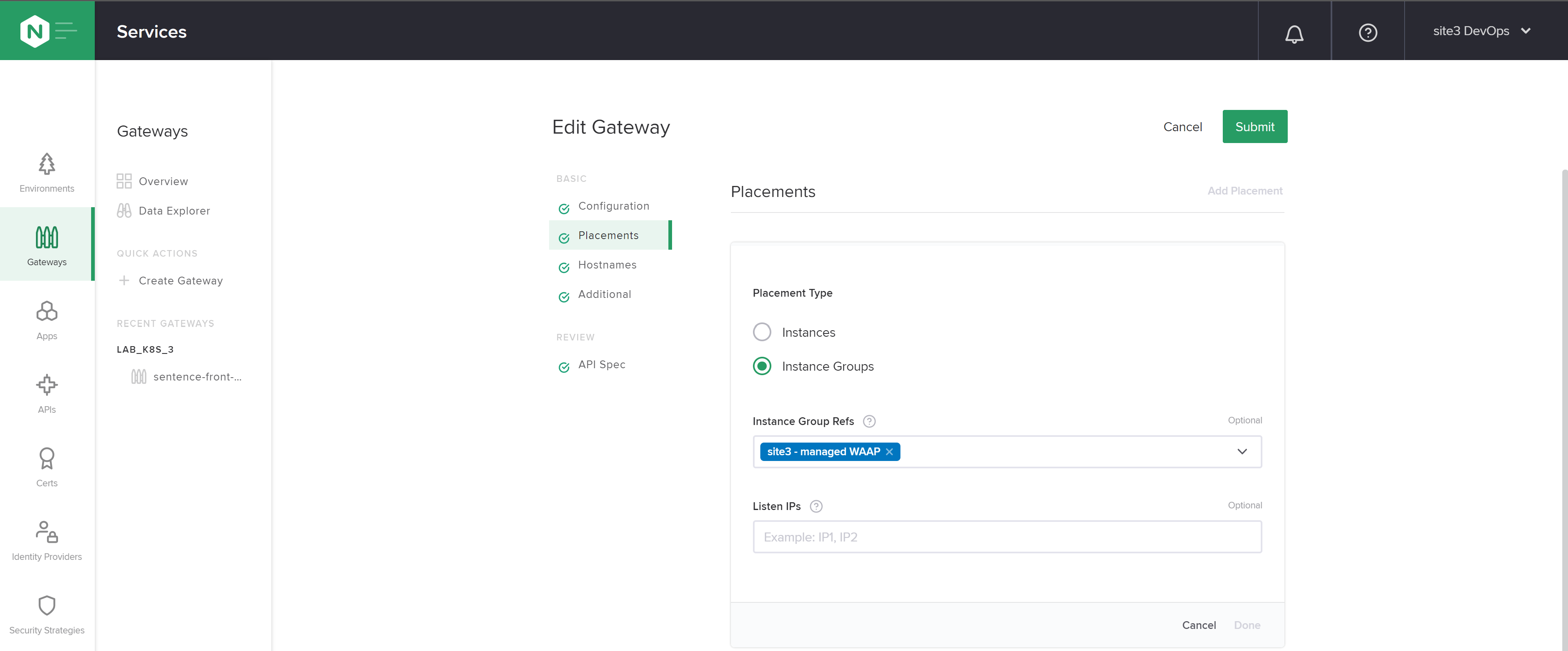

• Edit Gateway > Placements: show attached instance-group

Note: NGINX Controller v4: specific instance-groups could be assign to a User Role

• In your web browser, go to https://sentence-front-managed{{ site_ID }}.f5app.dev and generate some traffic by refreshing 10 times the page

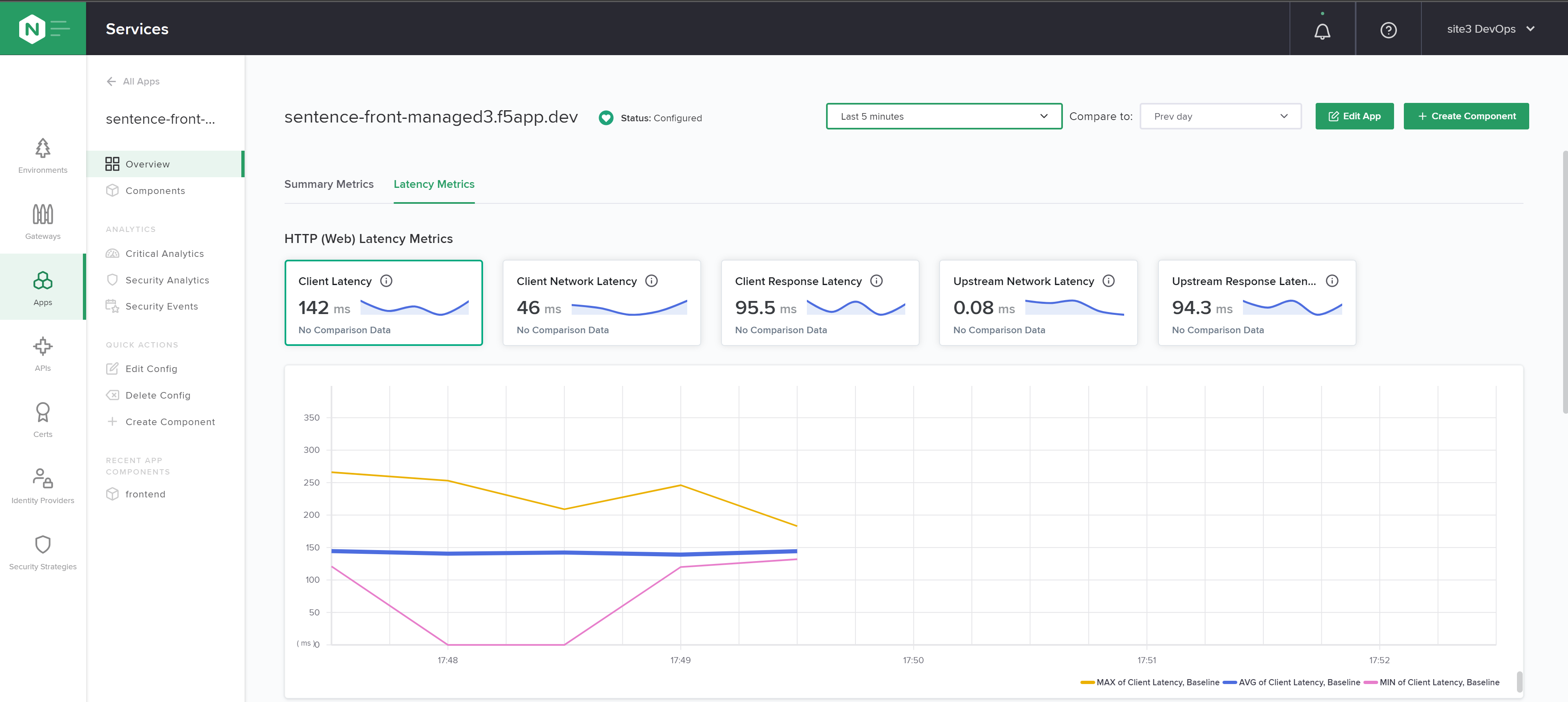

• Go to Services > Apps > sentence-front-managed{{ site_ID }}.f5app.dev

• Update filter to Last 5 minutes

• Switch tab to Latency metrics, click on compare to Prev week and see graphs

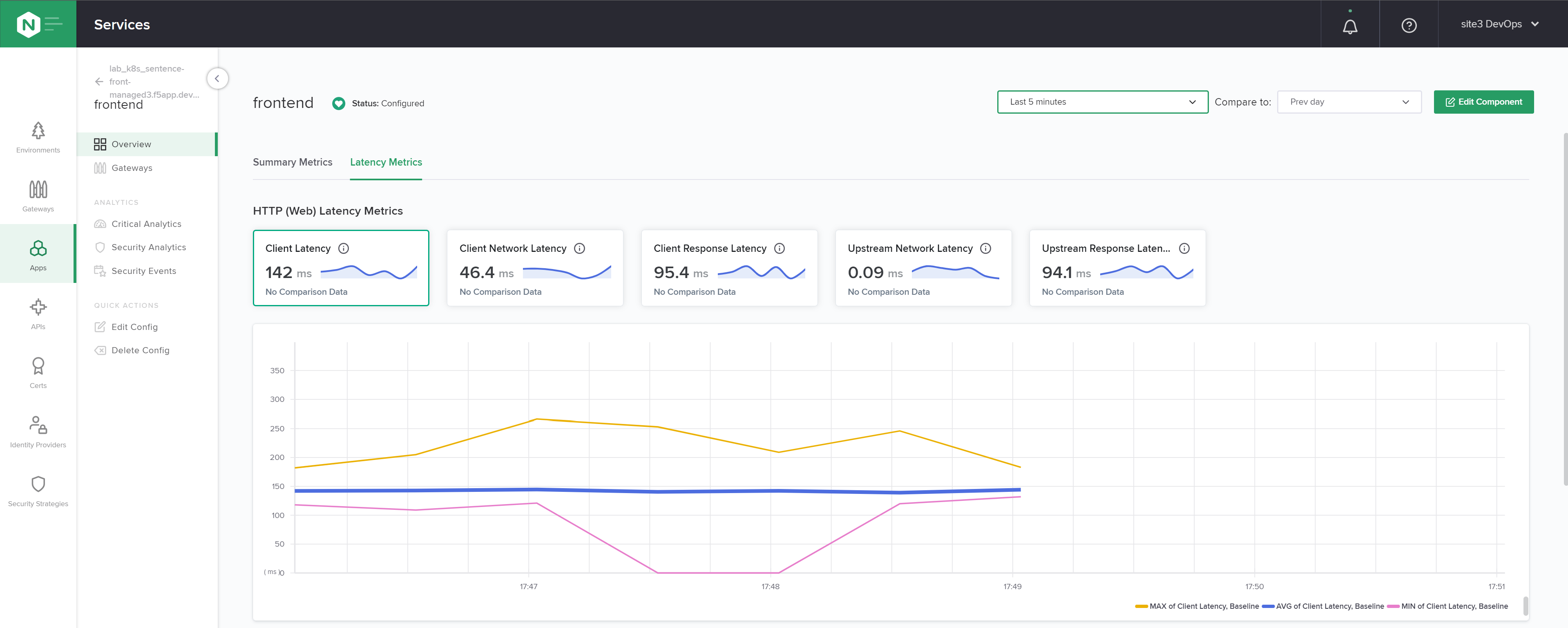

• Go to Components > frontend

• Update filter to Last 5 minutes

• Switch tab to Latency metrics, click on compare to Prev week and see graphs

Exercise 6: Simple starting point¶

If SecOps doesn’t have time to specify a standard WAF policy, a good way is to

1. use the pre-defined balanced_default WAF policy in Monitoring mode,

2. disable matched Signatures to prevent False Positives during QA tests and then in Production,

3. enable policy in Blocking mode after few weeks in Production

4. disable matched Signatures in case of complain from legitimate user

• In NGINX Controller, login as DevOps owner of your site

  • email: devops{{ site_ID }}@f5cloudbuilder.dev

  • password: NGINXC0ntroller!

• Go to Services > Apps > sentence-front-managed{{ site_ID }}.f5app.dev > Components > frontend

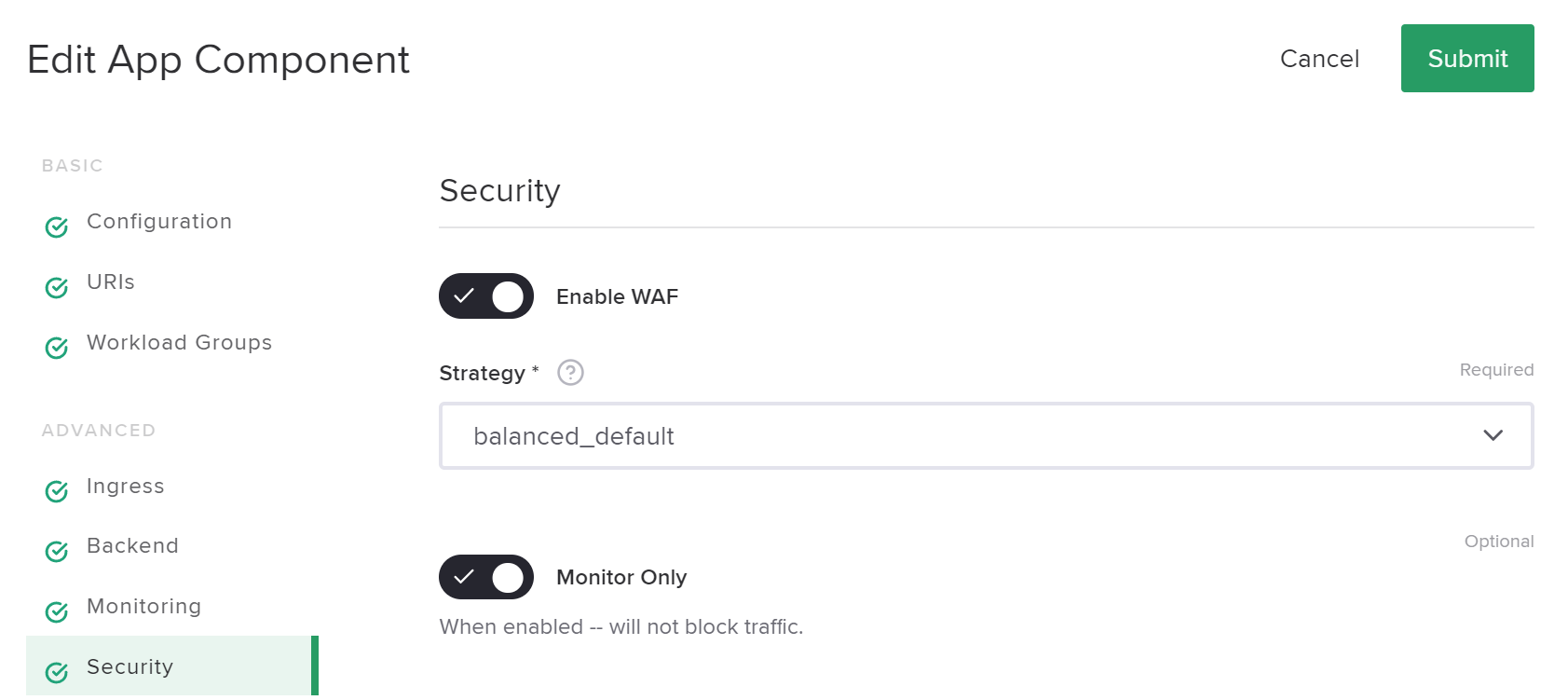

• Click on Edit component > Security

• Choose Security Strategy proposed by default: balanced_default then Submit

• Choose Strategy proposed by default: balanced_default then Submit

• On your web browser, do an attack:

https://sentence-front-managed{{ site_ID }}.f5app.dev?a=<script>alert('This is an attack');</script>

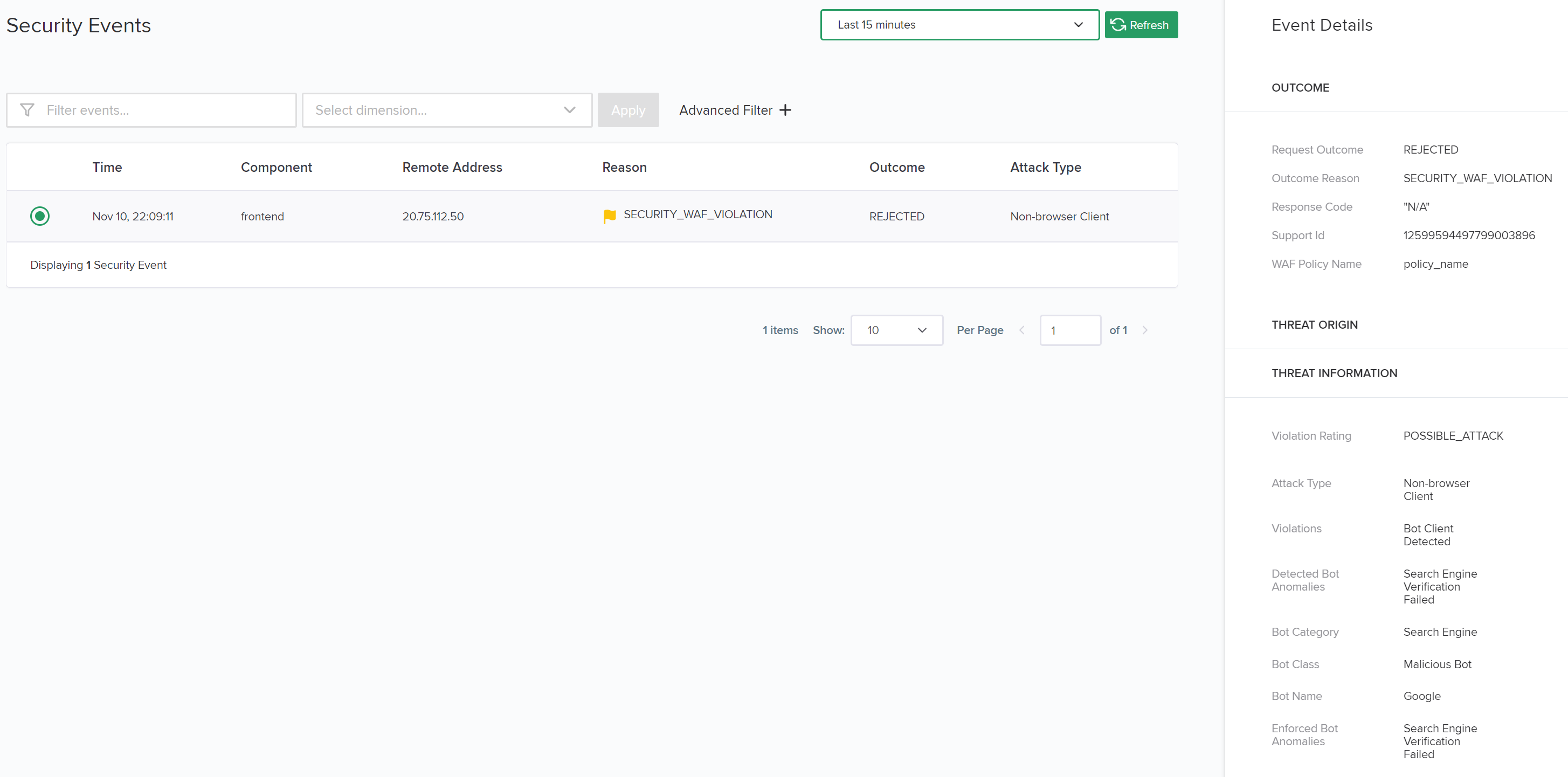

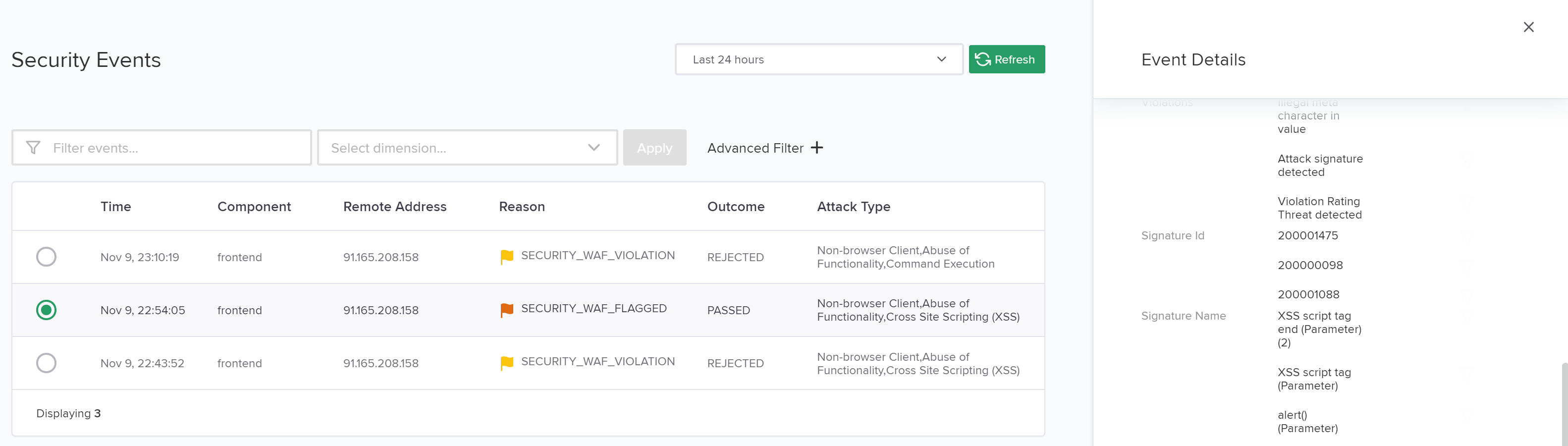

• In Controller, show related Security event

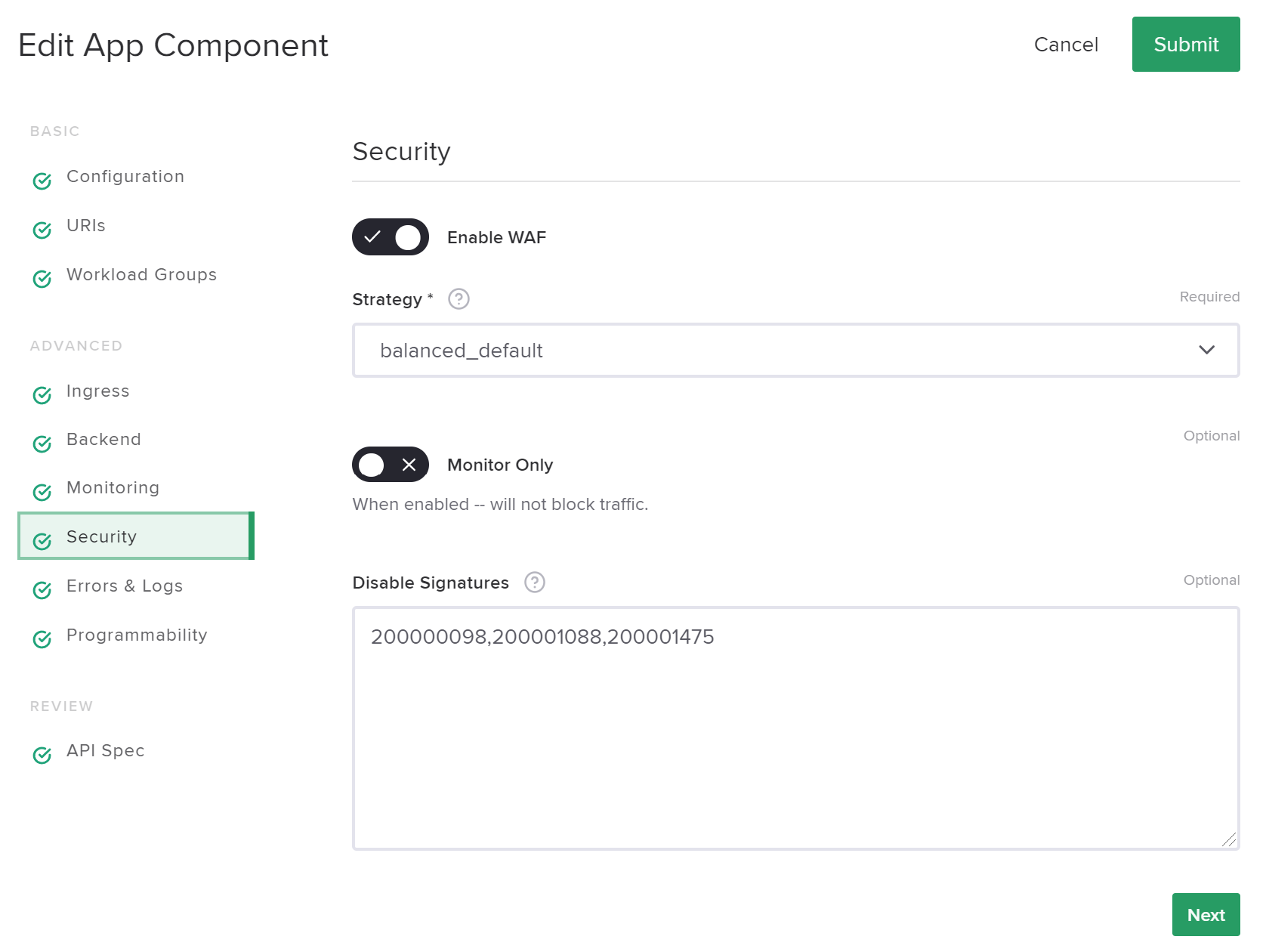

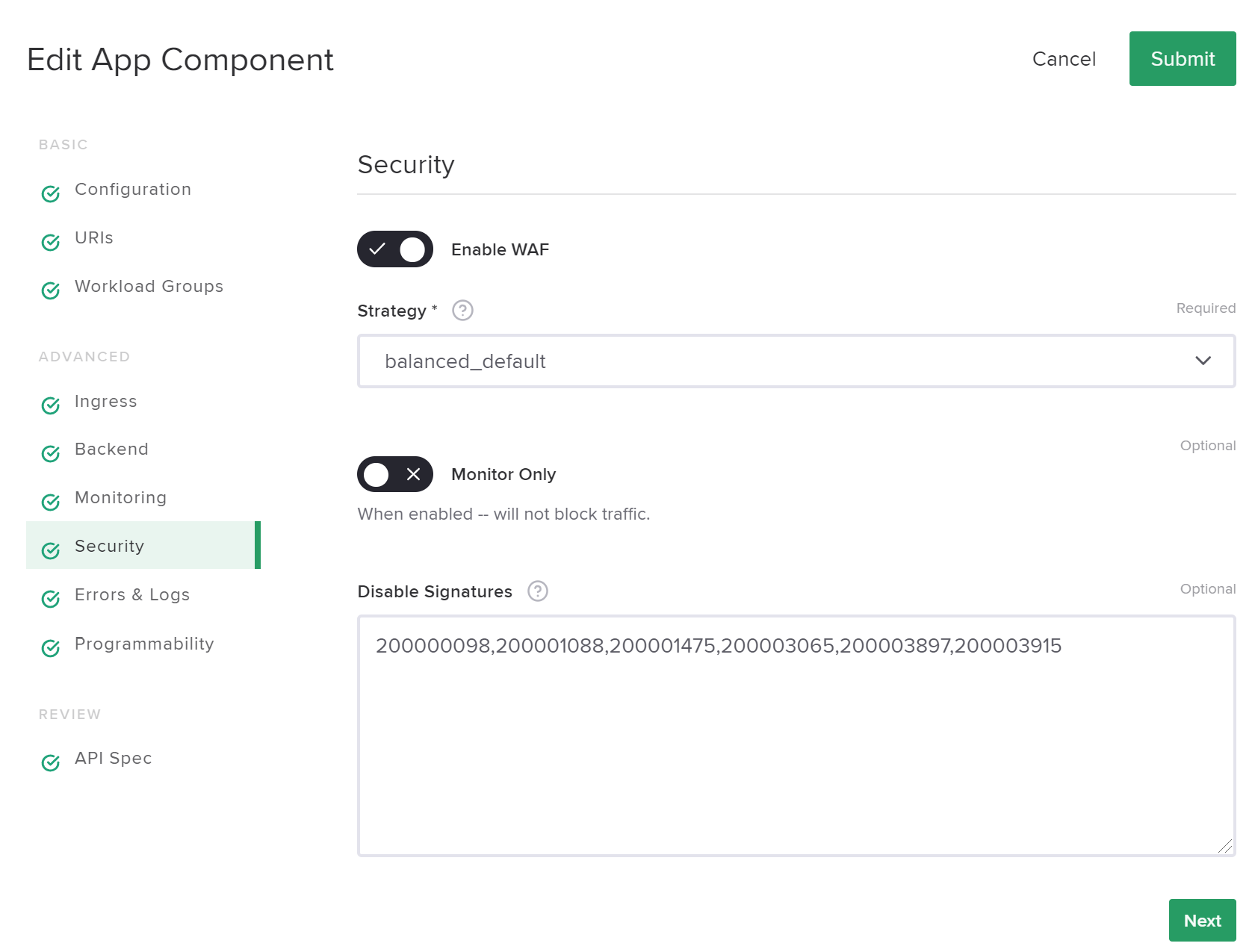

• Disable related signatures, set Security Strategy to blocking mode then Submit

• On your web browser, do an attack:

https://sentence-front-managed{{ site_ID }}.f5app.dev/?a='1=1;cat /etc/password'

• Note the support ID on the blocking page

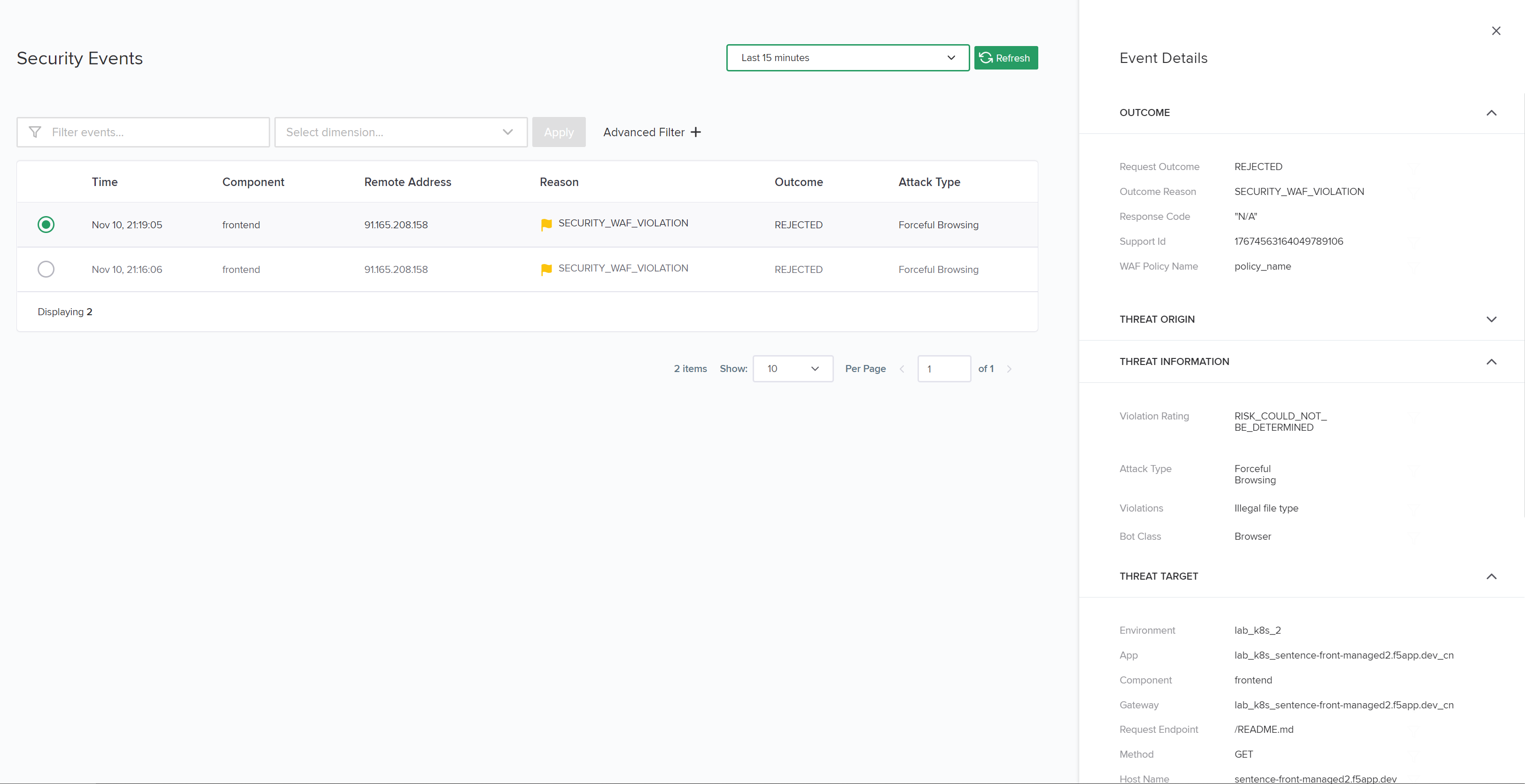

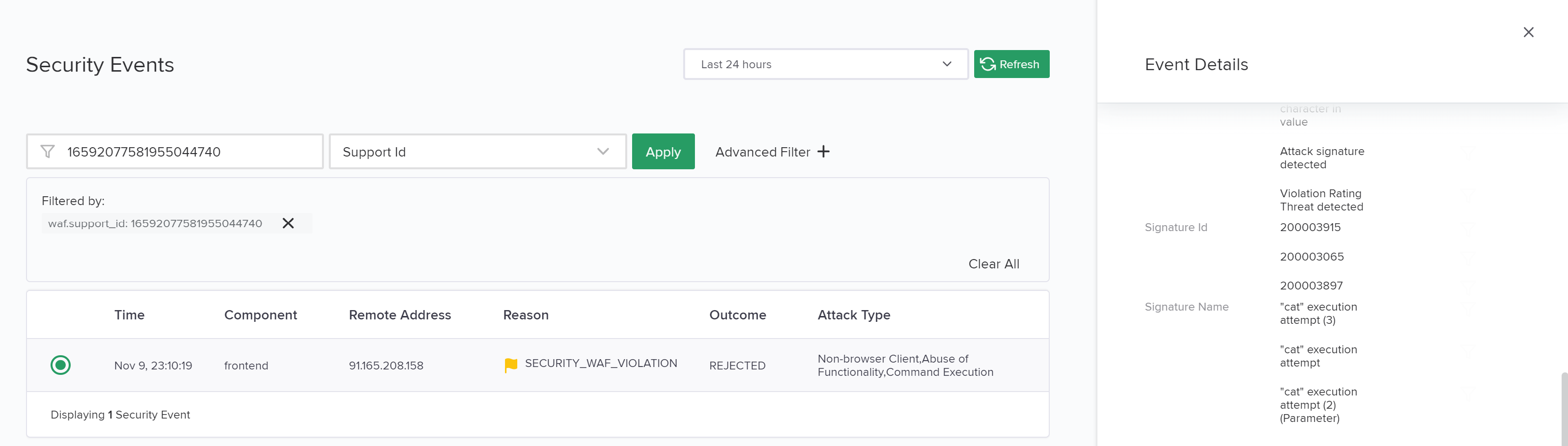

• In Controller, show related Security event by filtering on support ID

• Append related signatures to disabled list of signatures then Submit

• On your web browser, repeat the attack and see that is not blocked anymore

https://sentence-front-managed{{ site_ID }}.f5app.dev/?a='1=1;cat /etc/password'

Exercise 7: Standard and App specific policy¶

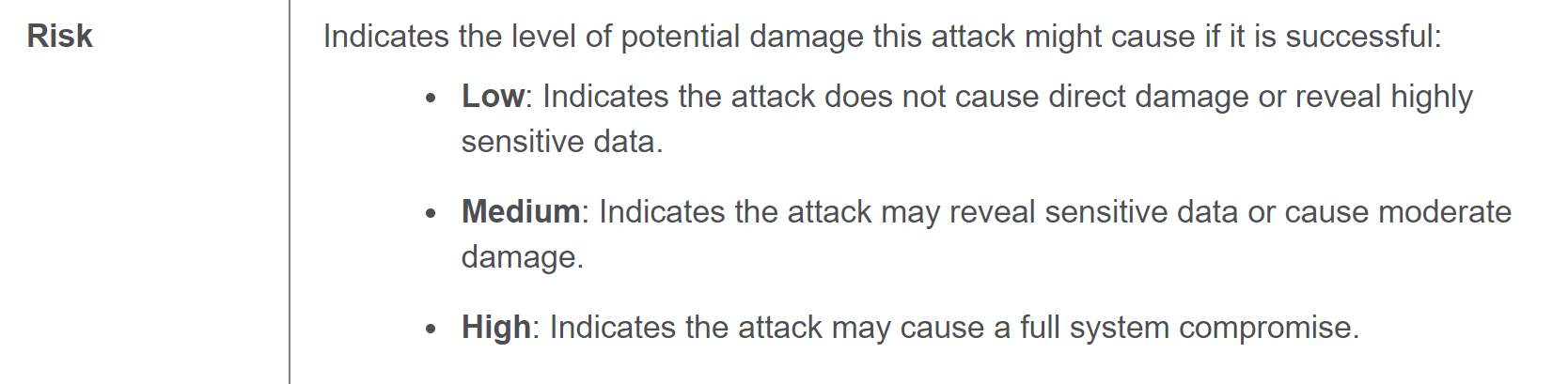

A good approach is to define few WAAP policies in order to cover Risk Prevalence by App Criticality. For example:

Tier1

Less Critical App with no user’s persistent privacy data Protect from software vulnerabilities and common attack vectors Tier1 is is a generic policy

Tier2

Medium Critical App with user’s persistent privacy data or generate a loss of revenue if App is out of service Protect from targeted attacks and advanced threat actors Tier2 should start using a generic policy and then be customized if needed

Tier3

Most Critical App that need an external communication of your company if an incident or a breach is encountered Protect from advanced fraud and highly specialized techniques Tier3 is clearly an App specific Policy

3 ways to define a policy:

1. Prepare in BIG-IP UI

if SecOps used to define WAF policy on BIG-IP, he can still continue to define it using BIG-IP UI and import it in Controller by following this guide

• Go to Jumphost

mkdir /tmp/converter
cp /root/source_images/f5-nap-policies/policy/owasp_rdp.xml /tmp/converter/
docker run -v /tmp/converter/:/tmp/converter/ aksdistrict{{ site_ID }}.azurecr.io/nap_converter_tool /opt/app_protect/bin/convert-policy -i /tmp/converter/owasp_rdp.xml -o /tmp/converter/policy.json | jq

• The output warns you about features not implemented yet in NGINX App Protect

2. Prepare in WAFFLER

Use this tool to discover how to create a basic Declarative Policy through an UI

• allow only server-technologies: Nginx, Node.js and Python

• In Blocking Settings, alarm and block on violation Illegal file type

• In File Types, add filetype md

• In Blocking Settings, enable violation Illegal URL

• In URLs, add wildcard url /admin*

• In Blocking Settings, enable violation IP is in the deny list

• In whitelist-ips, add a public ip address and always block it

output

{
  "policy": {
    "name": "policy_name",
    "template": {
      "name": "POLICY_TEMPLATE_NGINX_BASE"
    },
    "applicationLanguage": "utf-8",
    "enforcementMode": "blocking",
    "server-technologies": [
      {
        "serverTechnologyName": "Nginx"
      },
      {
        "serverTechnologyName": "Node.js"
      },
      {
        "serverTechnologyName": "Python"
      }
    ],
    "bot-defense": {
      "mitigations": {},
      "settings": {
        "isEnabled": false
      }
    },
    "urls": [
      {
        "name": "/admin*",
        "wildcardOrder": 0,
        "protocol": "https",
        "type": "wildcard",
        "attackSignaturesCheck": true,
        "metacharsOnUrlCheck": true
      }
    ],
    "filetypes": [
      {
        "name": "md",
        "wildcardOrder": 0
      }
    ],
    "whitelist-ips":
    [
        {
            "blockRequests": "always",
            "ipAddress": "1.1.1.1",
            "ipNetmask": "255.255.255.255"
        }
    ],
    "blocking-settings": {
      "violations": [
        {
          "name": "VIOL_FILETYPE",
          "alarm": true,
          "block": true
        },
        {
          "name": "VIOL_URL",
          "block": true,
          "alarm": true
        },
        {
          "name": "VIOL_BLACKLISTED_IP",
          "block": true,
          "alarm": true
        }
      ]
    }
  }
}

3. Advanced tuning

SecOps can tune his policy directly in the JSON file. More explanation in this guide and all details in the Schema reference

• go to specification of filetypes key

• disallow filetype using allowed key with value false

• go to specification of urls key

• disallow url using allowed key with value false

• go to specification of response page

• define you own responseContent as shown at the end dof the JSON example below

output

{
    "policy":
    {
        "name": "policy_name",
        "template":
        {
            "name": "POLICY_TEMPLATE_NGINX_BASE"
        },
        "applicationLanguage": "utf-8",
        "enforcementMode": "blocking",
        "server-technologies":
        [
            {
                "serverTechnologyName": "Nginx"
            },
            {
                "serverTechnologyName": "Node.js"
            },
            {
                "serverTechnologyName": "Python"
            }
        ],
        "urls":
        [
            {
                "name": "/admin*",
                "wildcardOrder": 0,
                "protocol": "https",
                "type": "wildcard",
                "attackSignaturesCheck": true,
                "metacharsOnUrlCheck": true,
                "isAllowed": false
            }
        ],
        "filetypes":
        [
            {
                "name": "md",
                "wildcardOrder": 0,
                "allowed": false
            }
        ],
        "whitelist-ips":
        [
            {
                "blockRequests": "always",
                "ipAddress": "1.1.1.1",
                "ipNetmask": "255.255.255.255"
            }
        ],
        "blocking-settings":
        {
            "violations":
            [
                {
                    "name": "VIOL_FILETYPE",
                    "alarm": true,
                    "block": true
                },
                {
                    "name": "VIOL_URL",
                    "block": true,
                    "alarm": true
                },
                {
                    "name": "VIOL_BLACKLISTED_IP",
                    "block": true,
                    "alarm": true
                }
            ]
        },
        "response-pages":
        [
            {
                "responseContent": "<html><head><title>NGINX workshop</title></head><body><h1>Blocking page</h1><br><br>Support = <%TS.request.ID()%></body></html>",
                "responseHeader": "HTTP/1.1 200 OK\r\nConnection: close",
                "responseActionType": "custom",
                "responsePageType": "default"
            }
        ]
    }
}

• save this policy in a file locally

• In NGINX Controller, login as SuperSecOps

  • email: supersecops@f5cloudbuilder.dev

  • password: NGINXC0ntroller!

• Go to Services > Security Strategies

• Create a strategy named lab5_site{{site_ID}} that reference a policy named also lab5_site{{site_ID}}

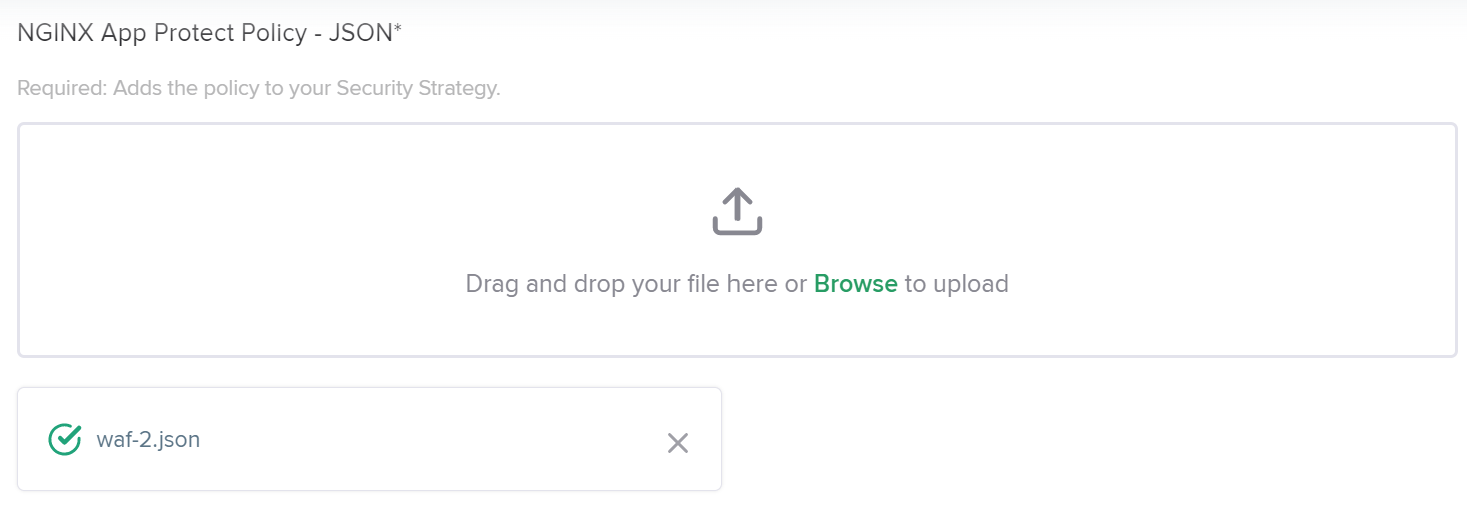

• Import your file and check if JSON syntax is green

• In NGINX Controller, login as DevOps owner of your site

  • email: devops{{ site_ID }}@f5cloudbuilder.dev

  • password: NGINXC0ntroller!

• Go to Services > Apps > sentence-front-managed{{ site_ID }}.f5app.dev > Components > frontend

• Click on Edit component > Security

• Choose Security Strategy: lab5_site{{site_ID}} then Submit

• On your browser, check that URLs below are blocked and retrieve support ID in Security events on Controller:

https://sentence-front-managed{{site_ID}}.f5app.dev/README.md
https://sentence-front-managed{{site_ID}}.f5app.dev/admin

Exercise 8: Update a policy widely¶

SecOps needs Enhance Security by enable bot defense due to a Web Scrapping attack done from fake Google bot

• On Jumphost, try to impersonated the search engine googlebot:

curl -k --user-agent "Mozilla/5.0 (compatible; Googlebot/2.1; +http://www.google.com/bot.html)" https://sentence-front-managed{{site_ID}}.f5app.dev

• go to specification of anti-bot key

• in settings, enable anti-bot

• in mitigations, raise an alarm for bots that belong to classes named trusted-bot and untrusted-bot ;

• block bots that does not succeed the validation challenge, i.e. the class named malicious-bot ;

output

{
    "policy":
    {
        "name": "policy_name",
        "template":
        {
            "name": "POLICY_TEMPLATE_NGINX_BASE"
        },
        "applicationLanguage": "utf-8",
        "enforcementMode": "blocking",
        "server-technologies":
        [
            {
                "serverTechnologyName": "Nginx"
            },
            {
                "serverTechnologyName": "Node.js"
            },
            {
                "serverTechnologyName": "Python"
            }
        ],
        "bot-defense":
        {
            "settings":
            {
                "isEnabled": true
            },
            "mitigations":
            {
                "classes":
                [
                    {
                        "name": "trusted-bot",
                        "action": "alarm"
                    },
                    {
                        "name": "untrusted-bot",
                        "action": "alarm"
                    },
                    {
                        "name": "malicious-bot",
                        "action": "block"
                    }
                ]
            }
        },
        "urls":
        [
            {
                "name": "/admin*",
                "wildcardOrder": 0,
                "protocol": "https",
                "type": "wildcard",
                "attackSignaturesCheck": true,
                "metacharsOnUrlCheck": true,
                "isAllowed": false
            }
        ],
        "filetypes":
        [
            {
                "name": "md",
                "wildcardOrder": 0,
                "allowed": false
            }
        ],
        "whitelist-ips":
        [
            {
                "blockRequests": "always",
                "ipAddress": "1.1.1.1",
                "ipNetmask": "255.255.255.255"
            }
        ],
        "blocking-settings":
        {
            "violations":
            [
                {
                    "name": "VIOL_FILETYPE",
                    "alarm": true,
                    "block": true
                },
                {
                    "name": "VIOL_URL",
                    "block": true,
                    "alarm": true
                },
                {
                    "name": "VIOL_BLACKLISTED_IP",
                    "block": true,
                    "alarm": true
                }
            ]
        },
        "response-pages":
        [
            {
                "responseContent": "<html><head><title>NGINX workshop</title></head><body><h1>Blocking page</h1><br><br>Support = <%TS.request.ID()%></body></html>",
                "responseHeader": "HTTP/1.1 200 OK\r\nConnection: close",
                "responseActionType": "custom",
                "responsePageType": "default"
            }
        ]
    }
}

• save this policy in a file locally

• In NGINX Controller, login as SuperSecOps

  • email: supersecops@f5cloudbuilder.dev

  • password: NGINXC0ntroller!

• Go to Services > Security Strategies > Policies

• Edit lab5_site{{site_ID}}, import your file and Submit

• All Components that reference this policy are automatically updated

• On Jumphost, check that the Googlebot request is now blocked:

curl -k --user-agent "Mozilla/5.0 (compatible; Googlebot/2.1; +http://www.google.com/bot.html)" https://sentence-front-managed{{site_ID}}.f5app.dev

• Retrieve the support ID and see details in Security events

Exercise 9: False Positive > Update a specific policy¶

SecOps needs to update a policy for a Specific App due to a False Positive. During functional test in QA environment, a signature were raised. SQUAD asked to their “Security Coach” to tag them as False Positive. Application Developers will update their code in next dev Sprint, update task is added in backlog. For this current Sprint, the new App feature must be deployed in Production as is.

• Check here the risk level associate to signature 200009283

• Append a modification block in order to disable signature 200009283

{
    "policy":
    {
        "name": "policy_name",
        "template":
        {
            "name": "POLICY_TEMPLATE_NGINX_BASE"
        },
        "applicationLanguage": "utf-8",
        "enforcementMode": "blocking",
        "server-technologies":
        [
            {
                "serverTechnologyName": "Nginx"
            },
            {
                "serverTechnologyName": "Node.js"
            },
            {
                "serverTechnologyName": "Python"
            }
        ],
        "bot-defense":
        {
            "settings":
            {
                "isEnabled": true
            },
            "mitigations":
            {
                "classes":
                [
                    {
                        "name": "trusted-bot",
                        "action": "alarm"
                    },
                    {
                        "name": "untrusted-bot",
                        "action": "alarm"
                    },
                    {
                        "name": "malicious-bot",
                        "action": "block"
                    }
                ]
            }
        },
        "urls":
        [
            {
                "name": "/admin*",
                "wildcardOrder": 0,
                "protocol": "https",
                "type": "wildcard",
                "attackSignaturesCheck": true,
                "metacharsOnUrlCheck": true,
                "isAllowed": false
            }
        ],
        "filetypes":
        [
            {
                "name": "md",
                "wildcardOrder": 0,
                "allowed": false
            }
        ],
        "whitelist-ips":
        [
            {
                "blockRequests": "always",
                "ipAddress": "1.1.1.1",
                "ipNetmask": "255.255.255.255"
            }
        ],
        "blocking-settings":
        {
            "violations":
            [
                {
                    "name": "VIOL_FILETYPE",
                    "alarm": true,
                    "block": true
                },
                {
                    "name": "VIOL_URL",
                    "block": true,
                    "alarm": true
                },
                {
                    "name": "VIOL_BLACKLISTED_IP",
                    "block": true,
                    "alarm": true
                }
            ]
        },
        "response-pages":
        [
            {
                "responseContent": "<html><head><title>NGINX workshop</title></head><body><h1>Blocking page</h1><br><br>Support = <%TS.request.ID()%></body></html>",
                "responseHeader": "HTTP/1.1 200 OK\r\nConnection: close",
                "responseActionType": "custom",
                "responsePageType": "default"
            }
        ]
    },
    "modifications":
    [
        {
            "entityType": "signature",
            "entity":
            {
                "signatureId": 200001475
            },
            "entityChanges":
            {
                "enabled": false
            },
            "action": "add-or-update"
        }
    ]
}

extra time : As describe in Exercise 7, create a new strategy and attach it to component
